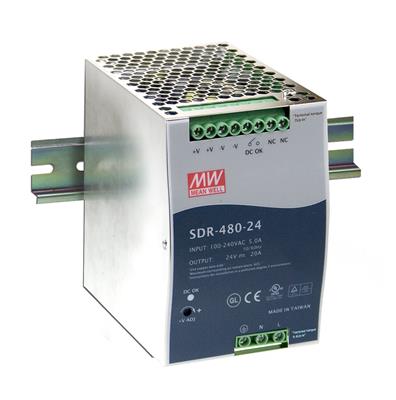

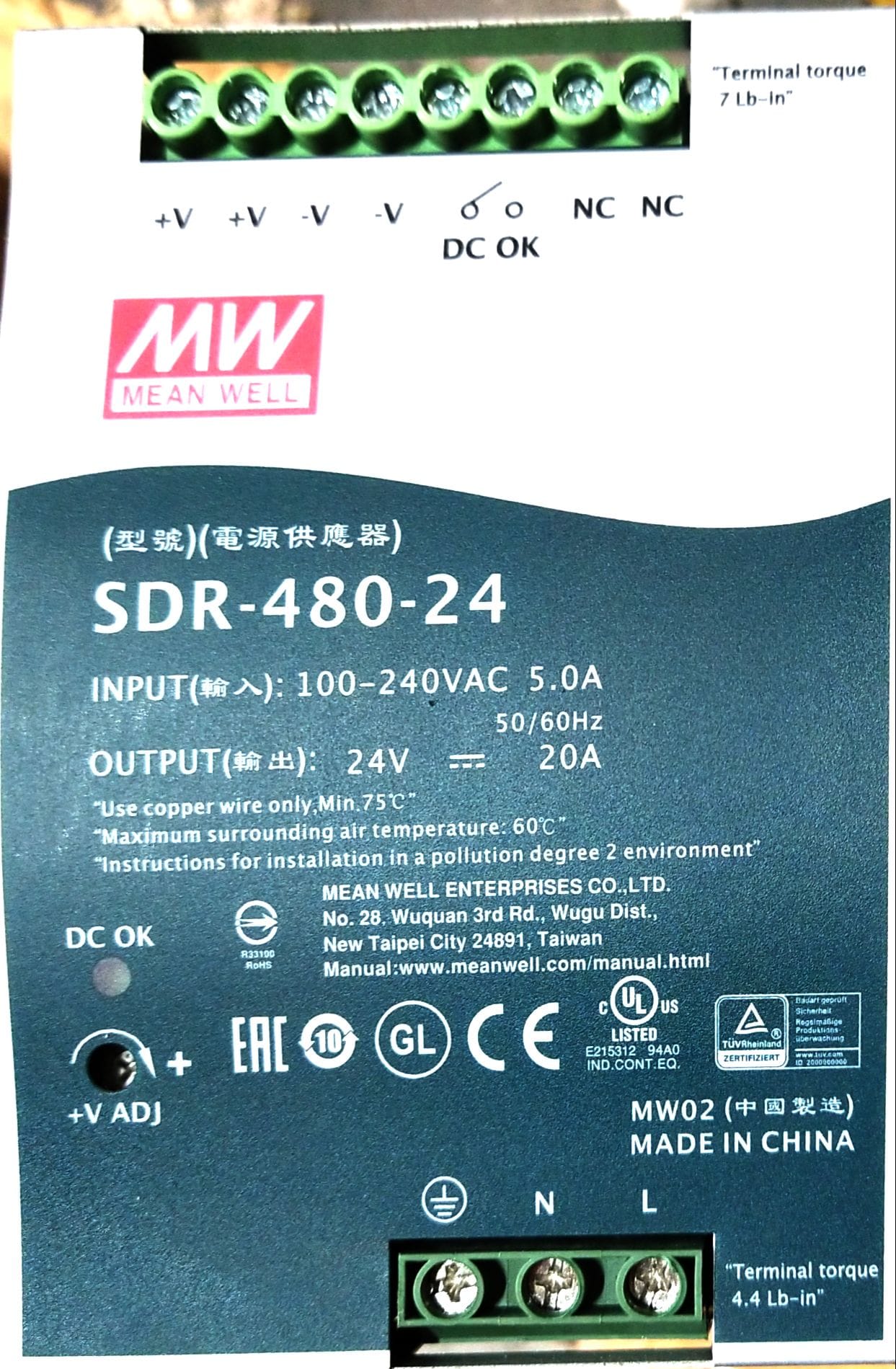

The Mean Well SDR-480-24 is a 480W DIN rail power supply with a single 24V output. It is designed for industrial applications and offers high efficiency and reliability.
Key Specifications:
- Model: SDR-480-24
- Type: DIN rail power supply
- Output Voltage: 24V
- Output Current: 20A
- Output Power: 480W
- Input Voltage: 90-264V AC
- Efficiency: Up to 94%
- Protection: Overcurrent, overvoltage, short circuit
- Mounting: DIN rail
Features:
- High efficiency: Reduces energy consumption and operating costs
- Wide input voltage range: Suitable for global applications
- Compact size: Saves space in your installation
- Metal case: Provides excellent EMI shielding
- Built-in active power factor correction (PFC): Improves power quality and reduces harmonic distortion
Applications:
-
- Industrial automation and control
- Factory automation
- Building automation
- Telecom and datacom
- Medical equipment
Additional Information:
- The SDR-480-24 is CE, cULus, and TUV certified.
- It meets EN61000-6 (EN-50082-2) EMC immunity standards
