| Item | Specifications |
|---|---|
| Part Number | MFDKTA390E |
| Product details | A5ⅡE series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5ⅡE series |
| Type | Position control type |
| Frame | F-Frame |
| Frequency response (kHz) | 2.3 |
| Control method | Position control |
| Safety Function | without |
| Power device Max. current rating | 100A |
| Current detector current rating | 90A |
| Supply voltage | 3-phase 200 V |
| I/F Classification of type | Pulse train only |

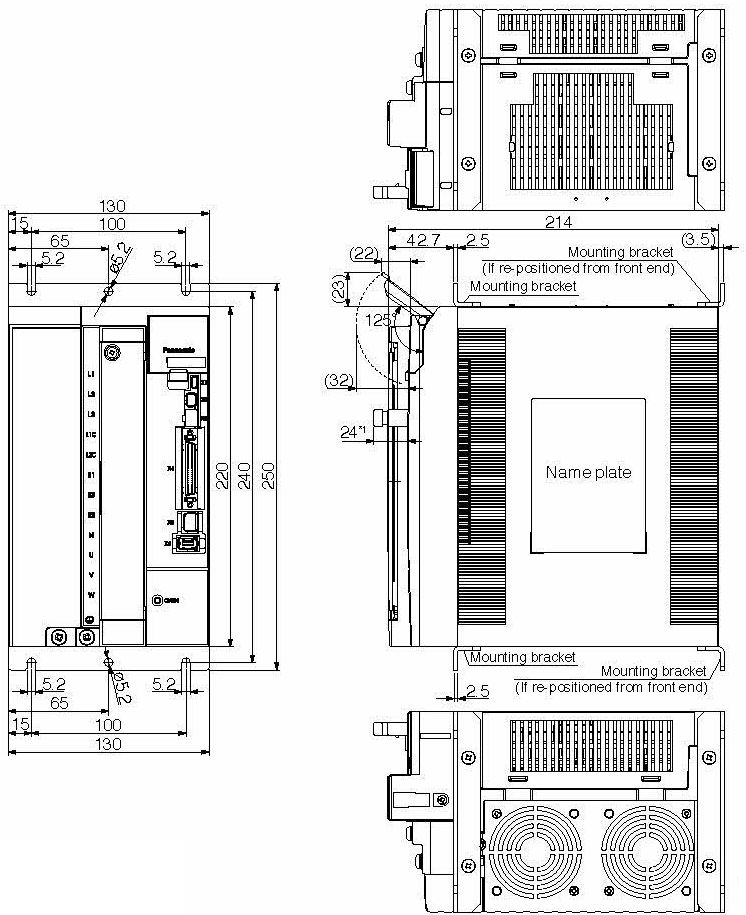

| Dimensions (W) (Unit: mm) | 130 |
| Dimensions (H) (Unit: mm) | 220 |
| Dimensions (D) (Unit: mm) | 214 |
| Mass (kg) | 4.8 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | 3-phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz |
| Input power: Control circuit | Single phase 200 V (+10% -15%) to 230 V (+10% -15%) 50/60 Hz |
| Encoder feedback | 20-bit (1048576 resolution) incremental encoder, 5-wire serial |

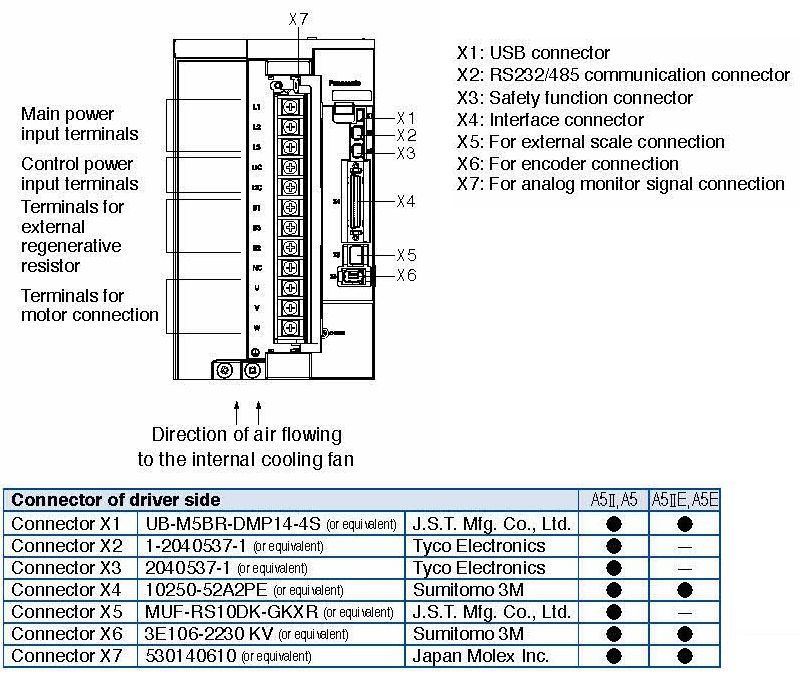

| Parallel I/O connector: Control signal Input |
General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output |
General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Output |
2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input |
2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output |
4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command |

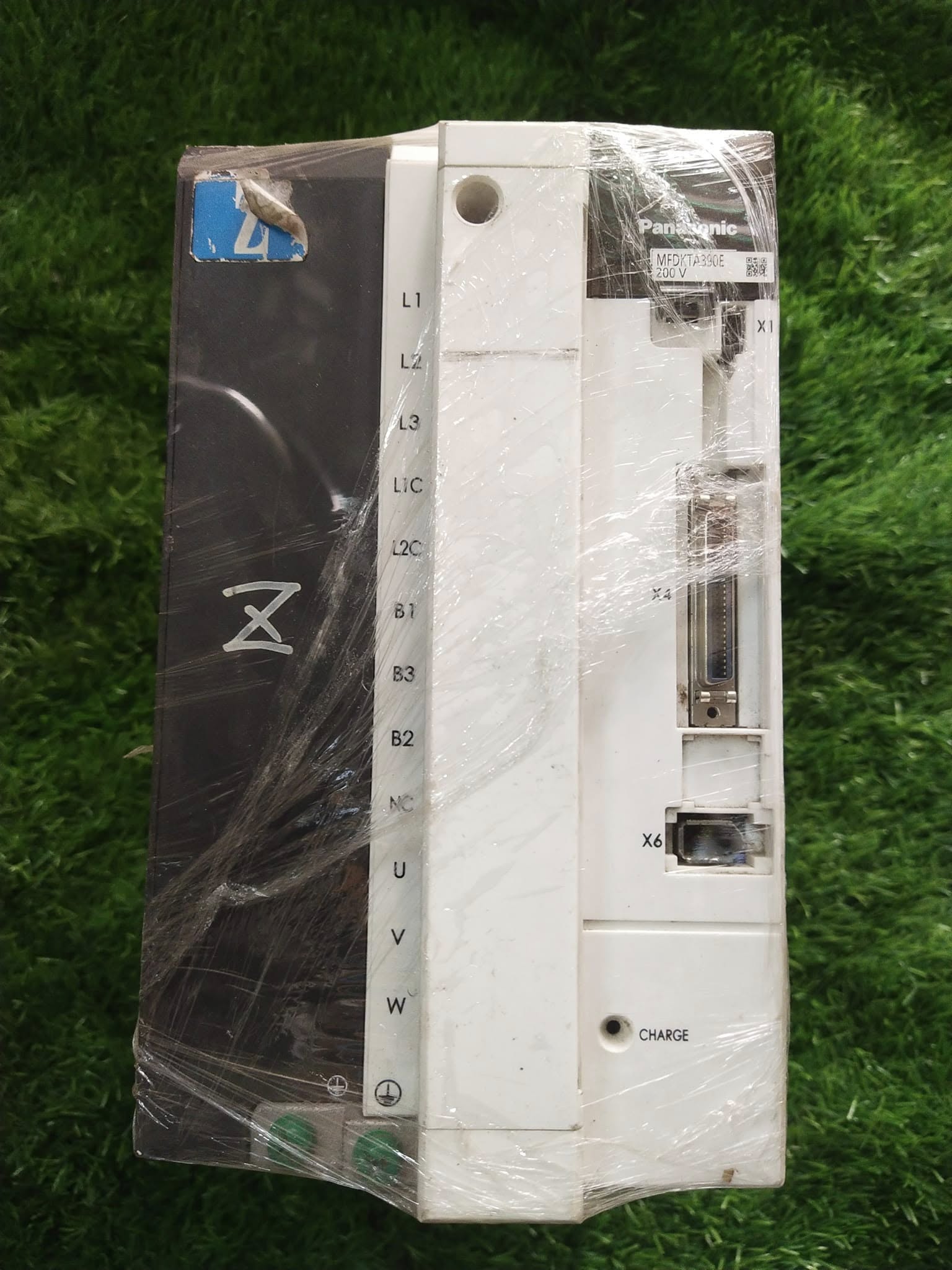

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used.
