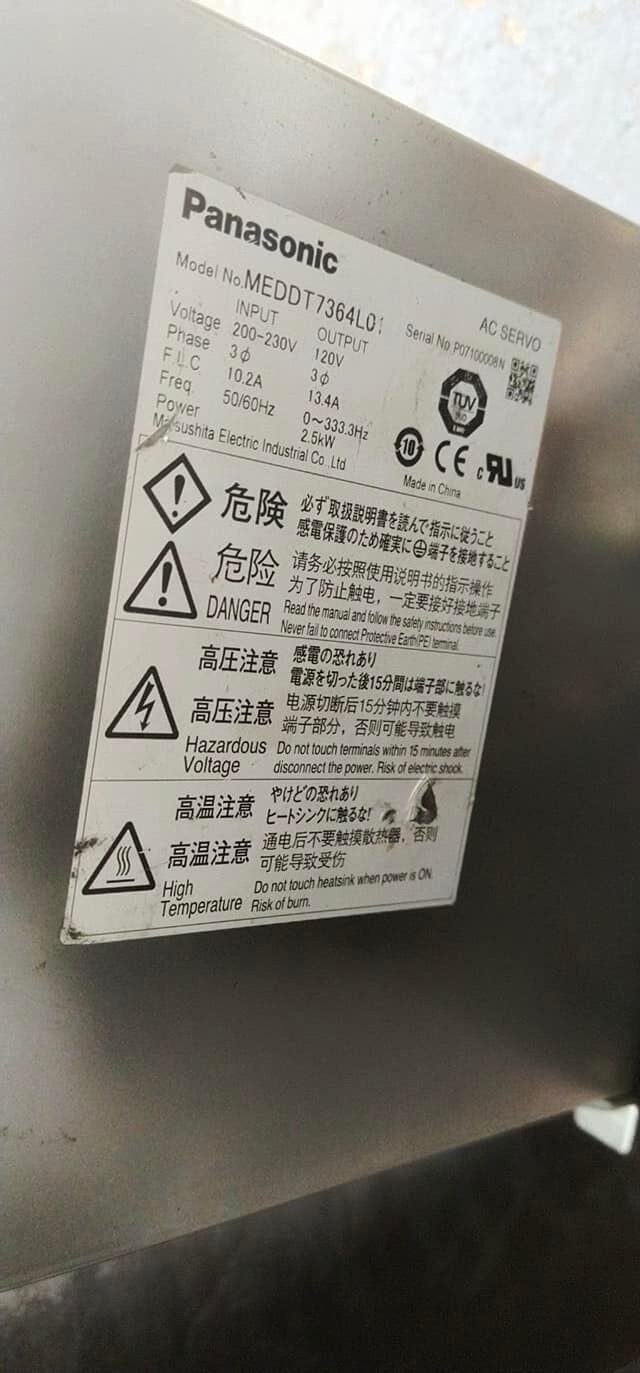

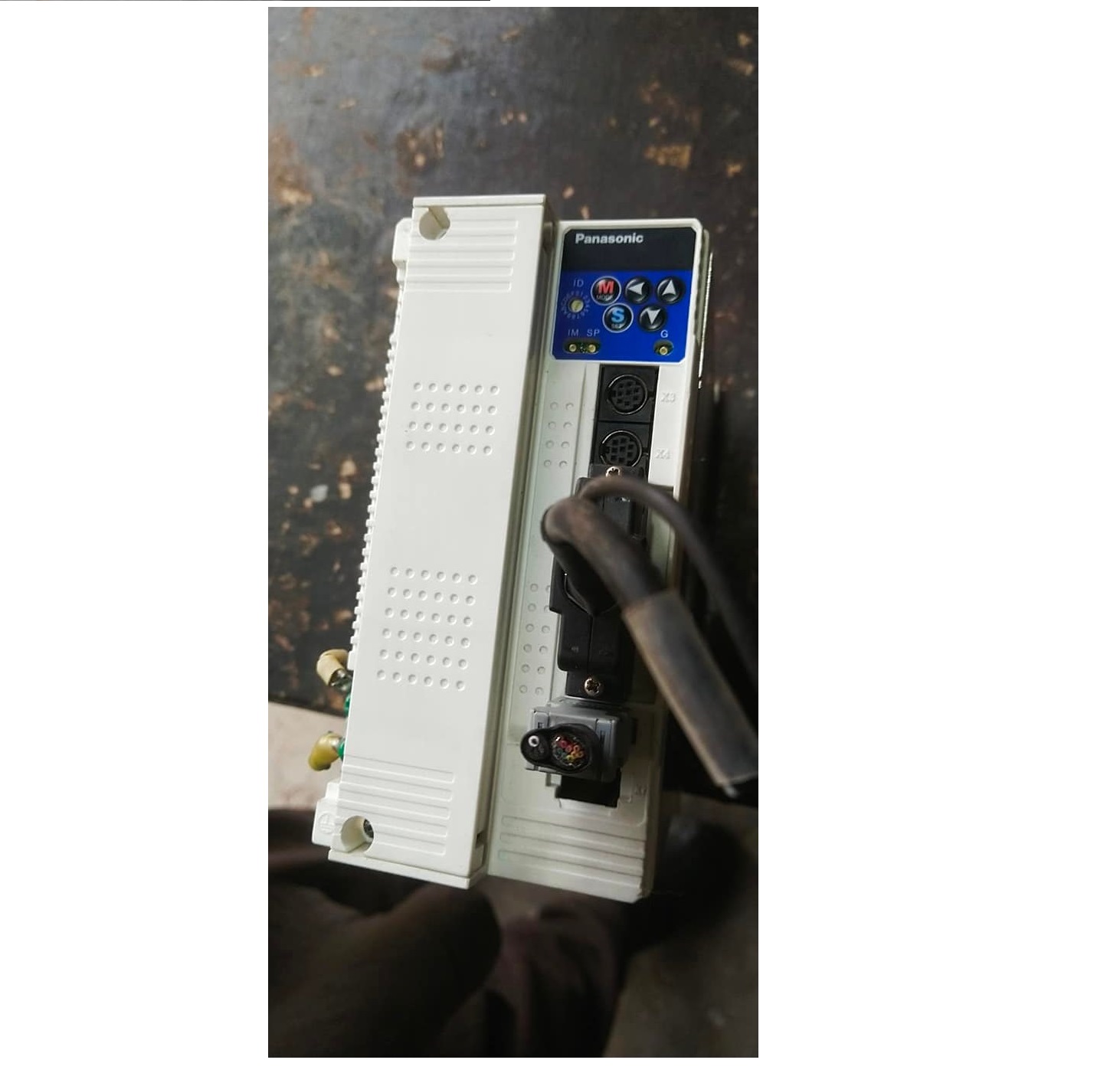

The PANASONIC MEDDT7364L01 is an AC servo driver, specifically from the MINAS A4 family. Servo drivers are essential components in automation systems, controlling the precise movement of servo motors.
Here’s a breakdown of the information I could gather:
- Function: The MEDDT7364L01 regulates the power supplied to a servo motor, enabling accurate control of speed, position, and torque. This is crucial in applications requiring high precision, such as robotics, CNC machining, and industrial automation.
- Manufacturer: Panasonic
- Family: MINAS A4 (This suggests it’s part of a series of servo drivers with similar features and capabilities)
- Power Supply: It appears to be designed for a 200-240V AC power supply.
- Status: It seems this particular model is discontinued by the manufacturer. This means it might be harder to find new but you can buy it from us used tested and 100 working products.
Important Considerations:
- Compatibility: When choosing a servo driver, it’s crucial to ensure it’s compatible with your servo motor. Check the voltage, current, and power requirements of both devices.
- Application: The specific requirements of your application (e.g., speed, torque, precision) will determine the best servo driver for your needs.
- Control Modes:
- Position control
- Speed control
- Torque control
- Feedback System: High-resolution encoder (17-bit or 20-bit, depending on the motor)
- Communication Interfaces:
- RS-232C, RS-422, and RS-485 for serial communication
- EtherCAT (optional for advanced networking)
- Protection Functions:
- Overcurrent protection
- Overvoltage protection
- Overload protection
- Overheat protection
- Encoder error detection
- Environmental Conditions:
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -20°C to 80°C (-4°F to 176°F)
- Humidity: 20-80% RH (non-condensing)
- Dimensions (Approx.): 150 mm (W) x 150 mm (H) x 155 mm (D)
- Weight: Approximately 2.5 kg (5.5 lbs)
- Compatible Motors: Designed to work with Panasonic A6 series servo motors (e.g., MSME, MSMF, MSMA series).
Features:
- High-speed, high-precision control for industrial automation.
- Advanced vibration suppression and auto-tuning capabilities.
- Supports various command inputs, including pulse train, analog voltage, and communication commands.
- Compact and lightweight design for space-saving installations.
