Key features and benefits:
- High-performance control: The drive incorporates a sine-wave PWM control system and a current control system, enabling smooth and accurate motion.
- Wide range of applications: It is suitable for various industrial applications, including machine tools, packaging machinery, and robotics.
- Robust and reliable: The drive is designed to withstand harsh industrial environments and features various safety mechanisms to protect the system.
- Flexible communication: It supports various communication protocols, including MECHATROLINK-II, CC-Link, and Ethernet/IP.
- Compact and efficient: The drive has a small footprint and is energy-efficient, reducing operating costs.
Technical specifications:
- Power supply: 3-phase 200 to 230VAC 50/60Hz or 1-phase 230VAC 50/60Hz
- Control mode: Sine-wave PWM control/current control system
- Dynamic brake: Built-in
- Safety features: Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown, servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection
- Communication: Maximum input pulse frequency: 500kpps (when using differential receiver), 200 kpps (when using open collector)
- Positioning feedback pulse: Resolution per encoder/servo motor rotation: 131072 p/rev
- Torque limit: Set by parameters or external analog input (0 to +10VDC/maximum torque)
- Speed control range: Analog speed command 1:2000, internal speed command 1:5000
- Structure: Self-cooling open (IP00)
- Ambient temperature: 0 to 55°C (32 to 131°F) (non-freezing), storage: -20 to 65°C (-4 to 149°F) (non-freezing)
- Ambient humidity: 90% RH maximum (non-condensing), storage: 90% RH maximum (non-condensing)
- Atmosphere: Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
- Elevation: 1000m (3280ft) or less above sea level
- Vibration: 5.9m/s2 maximum
- Weight: 15 kg
- Dimensions: 245 x 180 x 140 mm

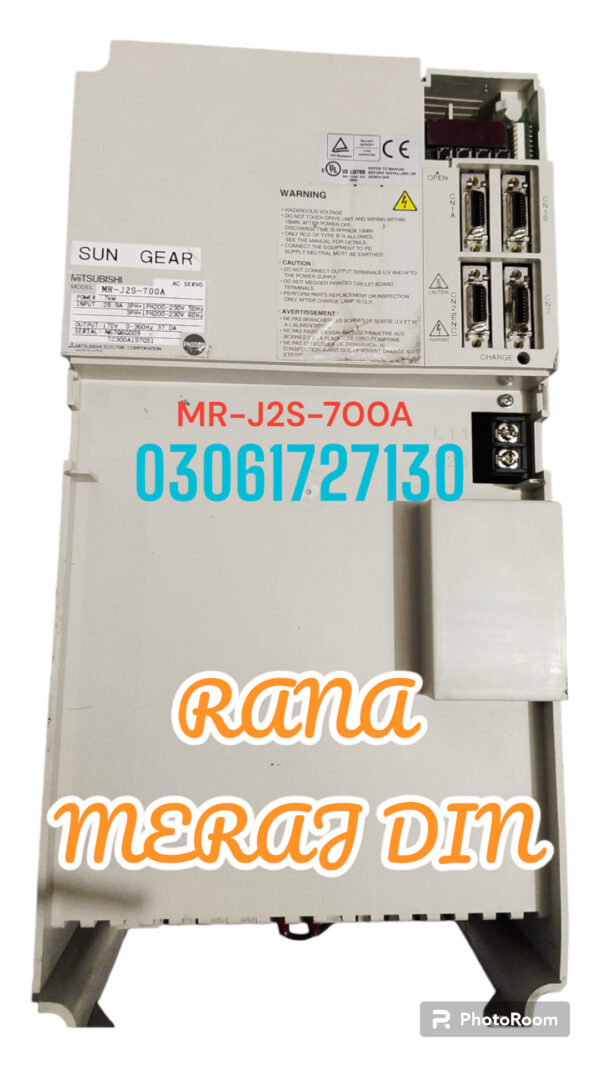

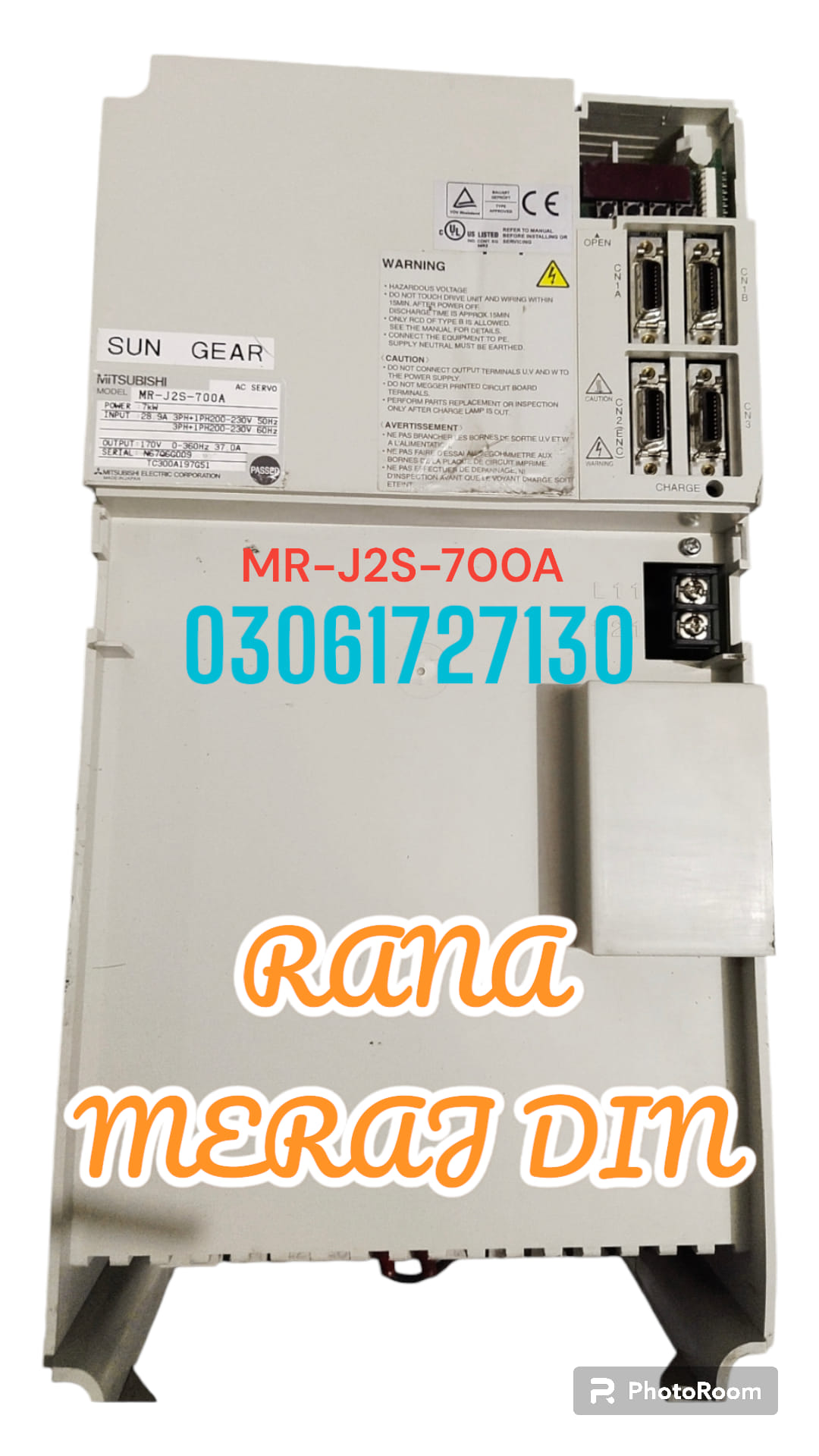

The Mitsubishi MR-J2S-700A is a high-performance servo drive designed for a wide range of industrial applications. Here are some of its key specifications:
Power Supply:
- Voltage: 3-phase 200 to 230VAC 50/60Hz or 1-phase 230VAC 50/60Hz
- Permissible Voltage Fluctuation: 3-phase 200 to 230VAC: 170 to 253VAC, 1-phase 230VAC: 207 to 253VAC
- Permissible Frequency Fluctuation: ±5% maximum
Control System:
- Control Mode: Sine-wave PWM control/current control system
- Dynamic Brake: Built-in
Safety Features:
- Overcurrent Shutdown: Yes
- Regeneration Overvoltage Shutdown: Yes
- Overload Shutdown (Electronic Thermal): Yes
- Servo Motor Overheat Protection: Yes
- Encoder Fault Protection: Yes
- Regeneration Fault Protection: Yes
- Undervoltage/Sudden Power Outage Protection: Yes
- Overspeed Protection: Yes
- Excess Error Protection: Yes
Communication:
- Maximum Input Pulse Frequency: 500kpps (when using differential receiver), 200 kpps (when using open collector)
- Positioning Feedback Pulse: Resolution per encoder/servo motor rotation: 131072 p/rev
Other Specifications:
- Torque Limit: Set by parameters or external analog input (0 to +10VDC/maximum torque)
- Speed Control Range: Analog speed command 1:2000, internal speed command 1:5000
- Structure: Self-cooling open (IP00)
- Ambient Temperature: 0 to 55°C (32 to 131°F) (non-freezing), storage: -20 to 65°C (-4 to 149°F) (non-freezing)
- Ambient Humidity: 90% RH maximum (non-condensing), storage: 90% RH maximum (non-condensing)
- Atmosphere: Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
- Elevation: 1000m (3280ft) or less above sea level
- Vibration: 5.9m/s2 maximum
Overall, the Mitsubishi MR-J2S-700A is a reliable and versatile servo drive that can be used in a wide range of industrial applications. Its high-performance control, robust design, and flexible communication make it a popular choice for demanding motion control tasks.
