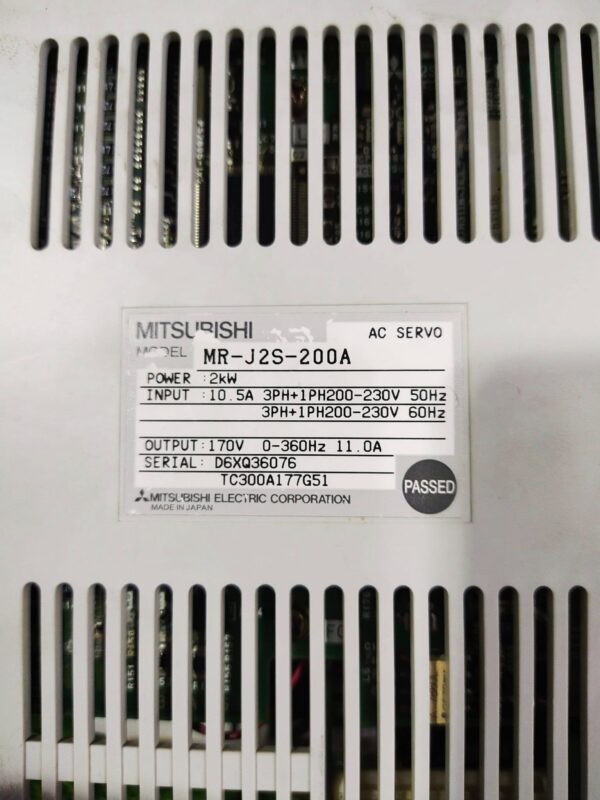

The Mitsubishi MR-J2S-200A is a high-performance AC servo drive designed for demanding motion control applications. Here are its key specifications:
Power Output:
- Rated output: 2 kW
- Rated current: 10 A
- Supply voltage: 200-230 VAC (3-phase)
Control Performance:
- Control system: Sine-wave PWM control/current control system
- Positioning accuracy: High precision positioning capabilities
- Speed control accuracy: Excellent speed regulation and response
- Torque control accuracy: Precise torque control for demanding applications
Features:
- Built-in regenerative resistor: Reduces energy consumption and heat generation
- Dynamic brake: Enables quick deceleration and stopping
- Safety features: Overcurrent protection, overload protection, overspeed protection, and more
- Communication: Supports various communication protocols, including CANopen, CC-Link, and Ethernet/IP
Environmental Specifications:
- Operating temperature: 0 to 55°C
- Storage temperature: -20 to 65°C
- Ambient humidity: 90% RH maximum (non-condensing)
Other Specifications:
- Dimensions: 240 x 140 x 140 mm
- Weight: 2.3 kg
Additional Notes:
- The MR-J2S-200A is part of the Mitsubishi MR-J2S series of servo drives, which offers a wide range of power ratings and features to suit various applications.
- The specific specifications may vary depending on the model and configuration.
- It is recommended to consult the official Mitsubishi Electric documentation for the most accurate and up-to-date information.

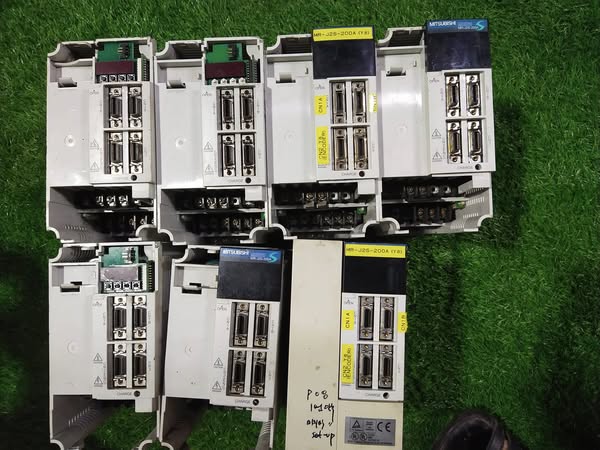

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used.
