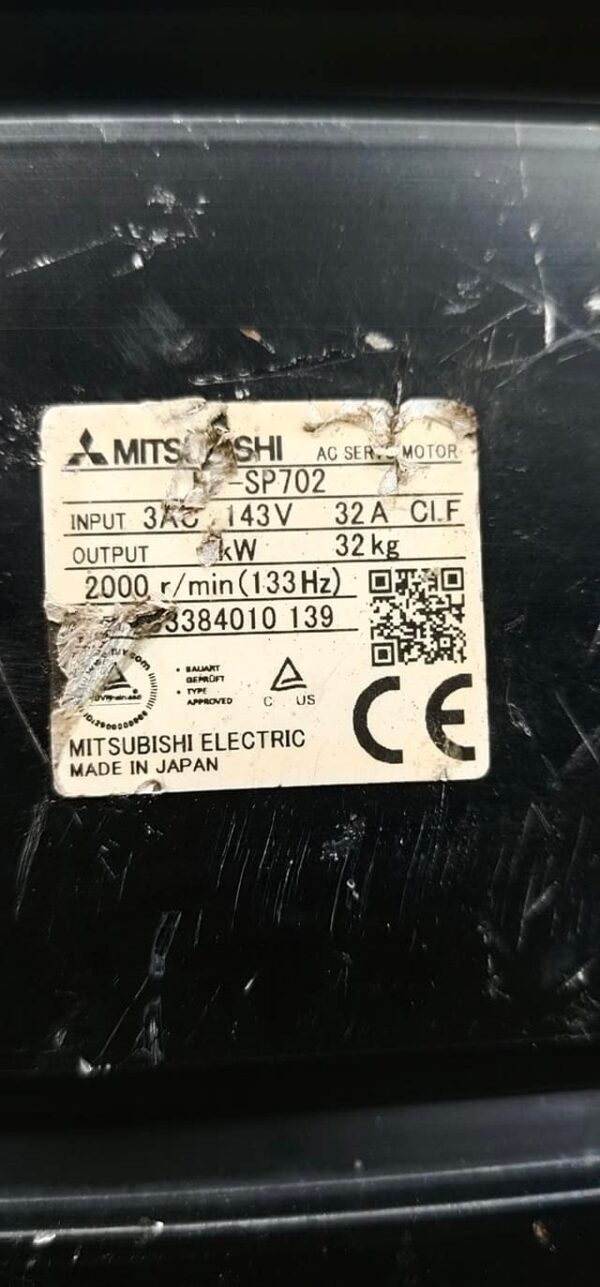

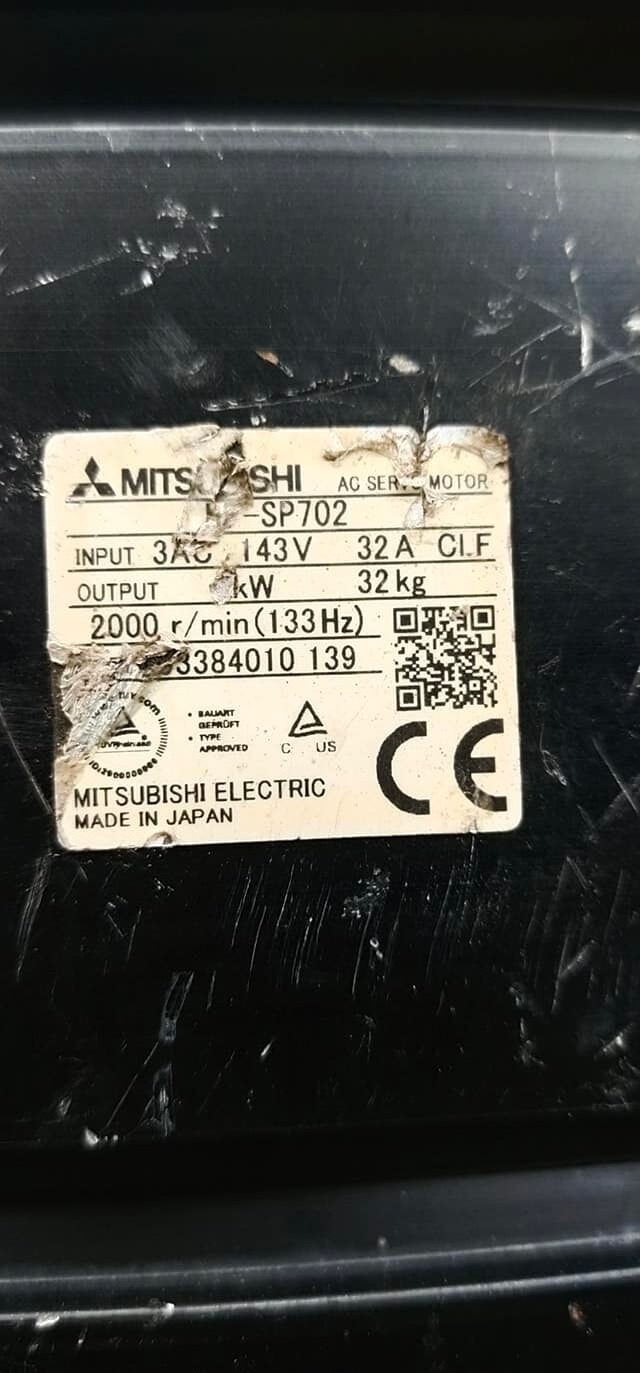

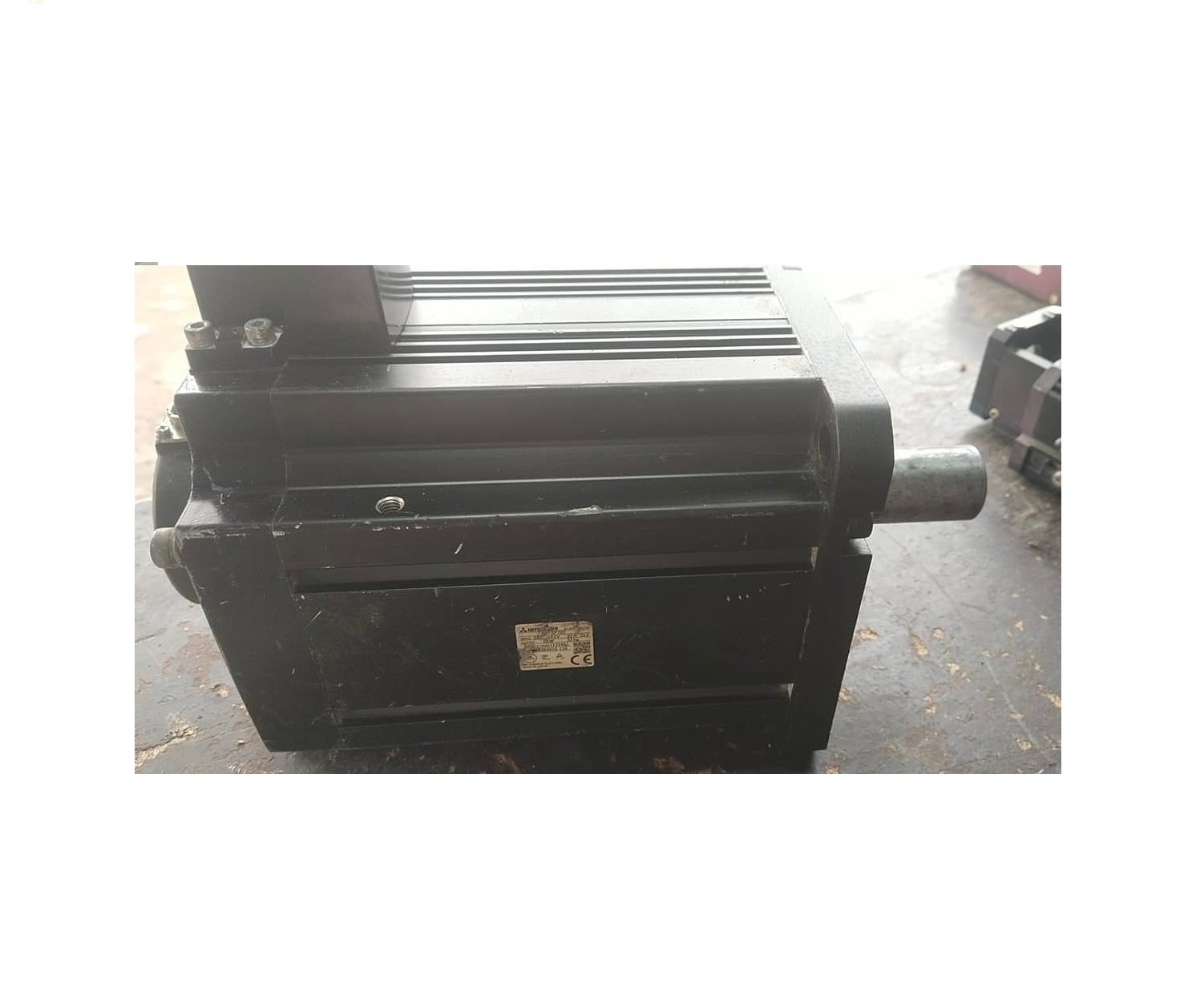

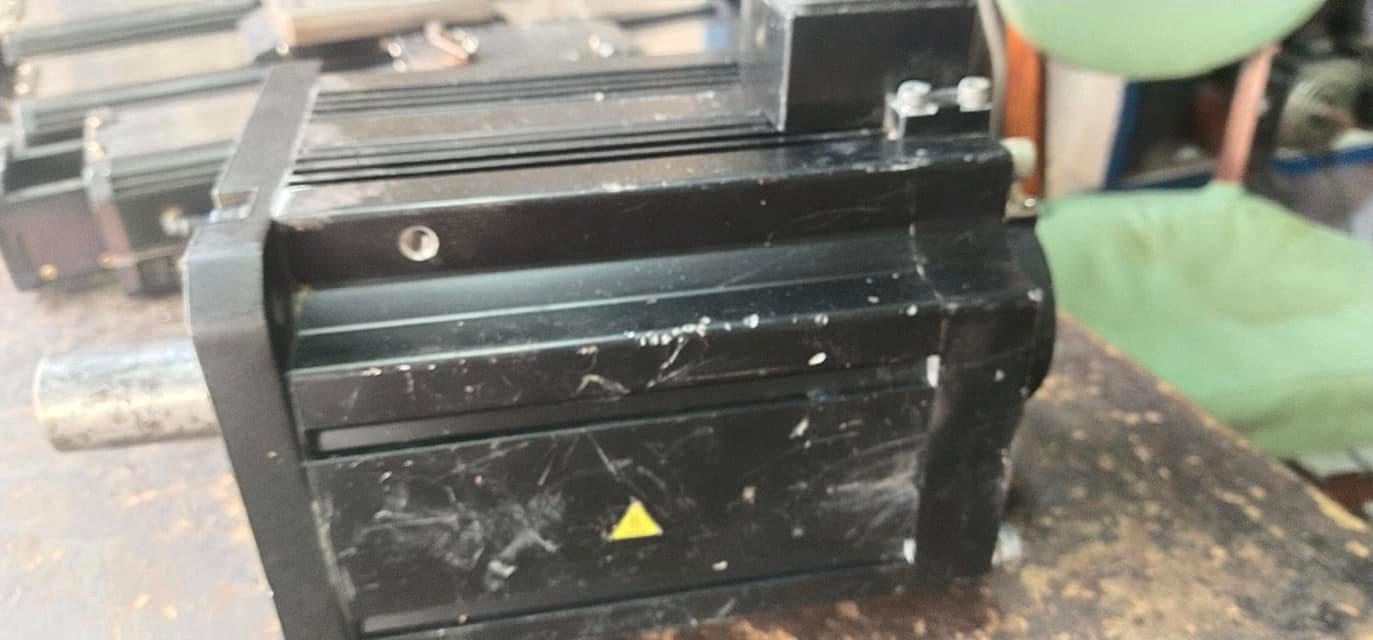

The Mitsubishi HF-SP702 is a powerful AC servo motor designed for demanding industrial applications. Here’s a breakdown of its key technical specifications:
General Specifications:
- Series: MELSERVO J3
- Type: AC brushless, rotary servo motor
- Shaft: Straight shaft with built-in absolute encoder (18-bit)
- Inertia: Medium inertia
- Power Capacity: Medium power
Mechanical Specifications:
- Flange Mounting: 176x176mm
- Protection Rating: IP67 (dust-tight and protected against temporary submersion in water)
- Ambient Temperature: 0 to +40°C
- Dimensions:
- Height: 237.1mm
- Width: 176mm
- Depth: 282.5mm
- Weight: Not specified in the search results
Additional Features:
- Encoder: Built-in 18-bit absolute encoder for precise position feedback
- Application: Suitable for material handling systems, robots, and X-Y tables
- Series: MELSERVO J3, HF-SP
- Shaft: Straight shaft
- Cooling: Self-cooled
