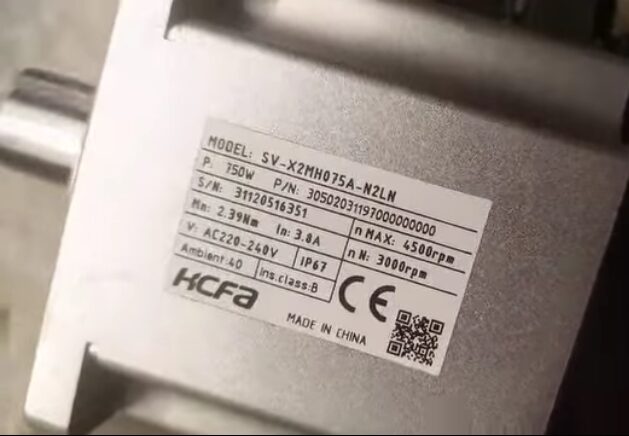

Certainly! Here are the descriptions of the HCFA SV-X2MH075A-N2LN Servo Motor:
- Model Number: SV-X2MH075A-N2LN
- Power: 750W (0.75kW)
- Voltage Range: 220-240V
- Current: 3.8A
- Maximum RPM: 4500
- Torque: 2.39N-m
- Shaft Diameter: 19mm
- Flange Diameter: 70mm
- Weight: 2.21kg
- Length (excluding flange & shaft): 92 mm

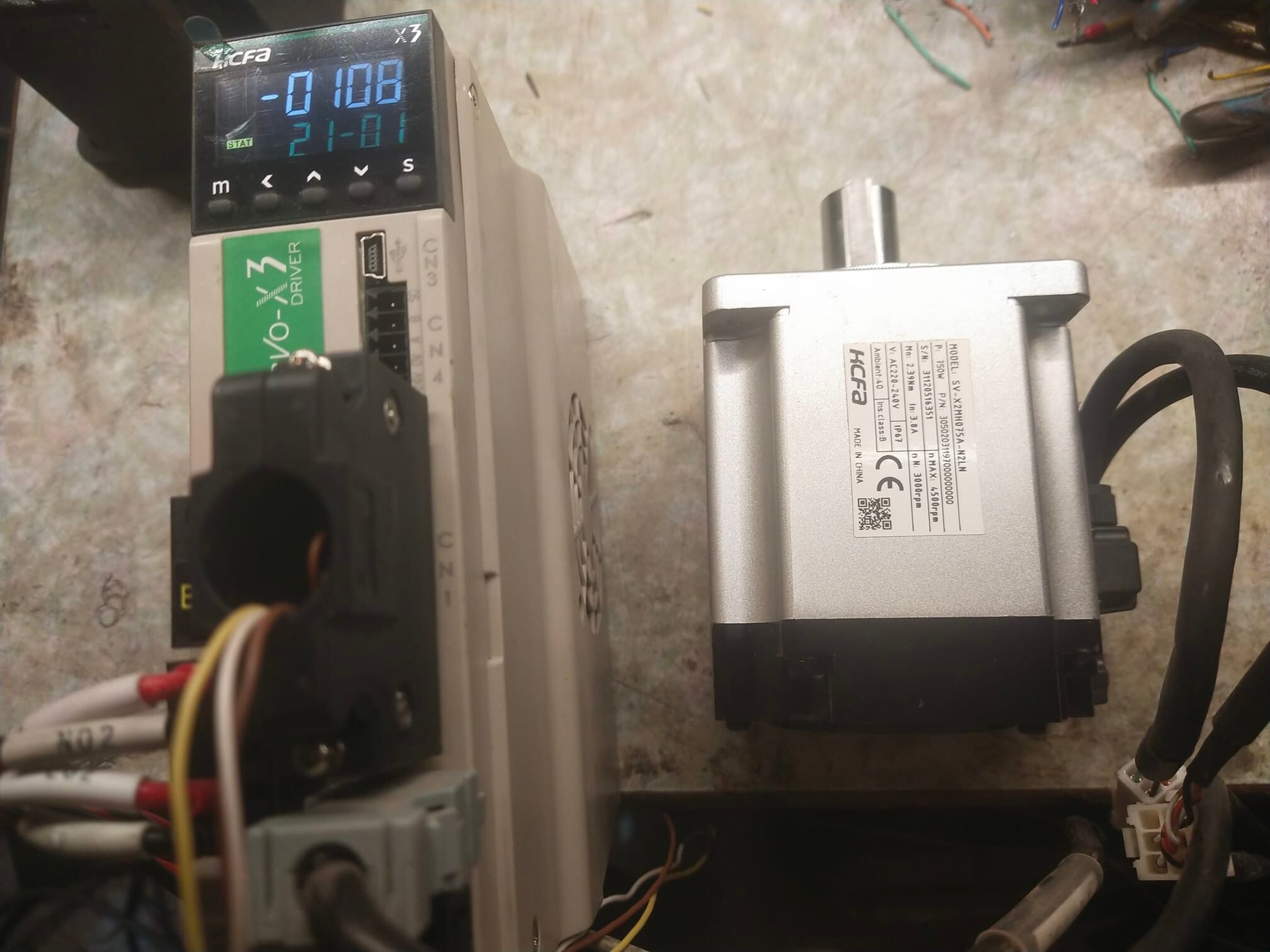

This servo motor is often paired with the driver model SV-X2EA075A-A. It delivers precise control suitable for various industrial applications.

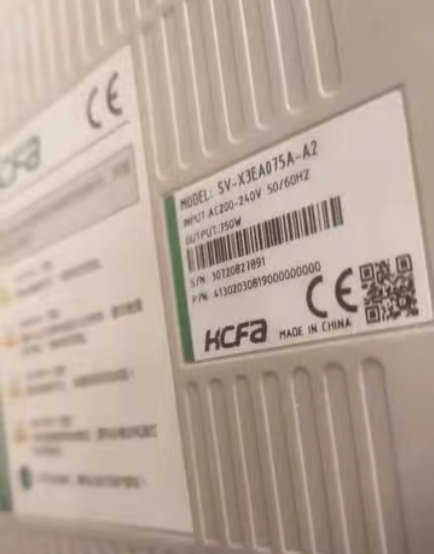

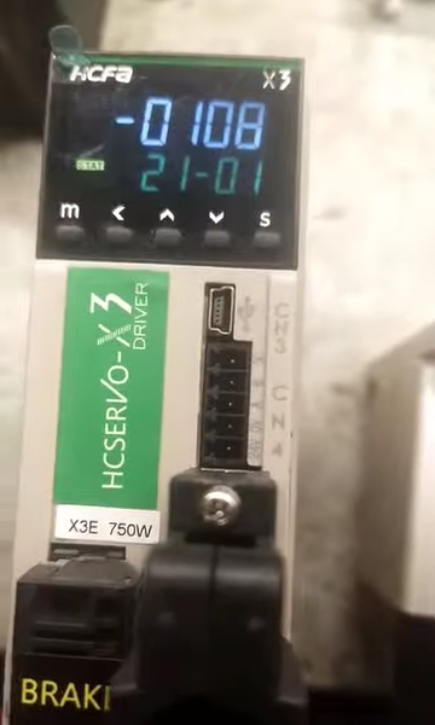

The HCFA Servo Drive SV-X3EA075A-A2 is a high-performance motor driver designed for various industrial and automation applications. Here are some of its key specifications:
General Specifications:
- Model: SV-X3EA075A-A2
- Type: Servo Drive
- Input Voltage: 200-240V AC, 50/60Hz
- Output Power: 750W (0.75kW)
- Control Mode: Position, Speed, Torque
- Communication: CANopen, Modbus RTU, RS-485
- Protection: Overcurrent, Overvoltage, Short Circuit
Performance Specifications:
- Maximum Speed: 6000 RPM
- Maximum Torque: 3.0 Nm
- Resolution: 17 bits
- Response Time: <1ms
Other Features:
- Compact and lightweight design
- High efficiency and low noise
- Built-in safety functions
- Easy to install and configure
Applications:
- CNC machines
- Packaging machinery
- Textile machinery
- Robotics
- Material handling
